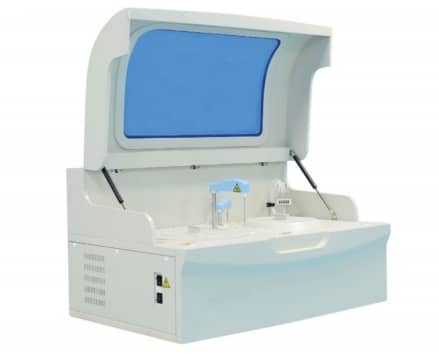

INDIAN PRODUCTS
Technical Features:
CODE
LD1208
LD1209
Type
Bench-top,Discrete,Fully automatic
Vertical,Discrete,Fully automatic
Throughput
200T/H
400T/H
Analysis Method
End-point,Fixed-time,Rate
End-point,kinetic,Two-point
Sample Positions
Reagent Positions
Sample Volume
49 sample positions
56 refrigerated reagent positions
2ul~70ul(0.1ul stepping)
120 sample positions
90 pcs(With refrigerated function)
2-30ul,0.1μl step
Reagent Volume
R1&R2:20ul~350ul (1ul stepping)
20-300μl,1μl step
Probe cleaning
Reagent tray cooling
Reaction Time
Automatic washing both interior and exterior
Continuous 2°C~8°C cooling within 24 hours
10 minutes
Automatic washing both interior and exterior
Continuous 2°C~8°℃ cooling within 24 hours
1.0 minutes
Temperature Control
37°C±0.1℃,with online software
monitor the temperature
37±0.1°℃,automatic heating
Cuvettes
120 reusable reaction cuvettes
(optical path length 6mm)
90 reusable reaction cuvettes
Mixer probe
After adding reagent and sample,
blending immediately
Washing
Light Source
After finishtesting,washing probe wash
cuvettes automatically
12V/30W halogen-tungsten lamp,
2000 hours
After finishtesting,washing probe wash
cuvettes automatically
Halogen-tungsten lamp
Spectroscopic methods
Post light split detection technique
Wavelength Range
340,405,450,510,546,578,630,700nm
340-700nm,8 wavelengths,
(4 positions are optional)
Linear Range
0.000~3.000Abs
0.0001Abs
Power Supply
Package Size (W*D*H)
Gross Weight
110/220V±10%,50/60Hz
1120*730*980mm
185kg
AC110/220V,±10%,50/60Hz,1000VA
1220*1340*890mm
200Kg
72.159

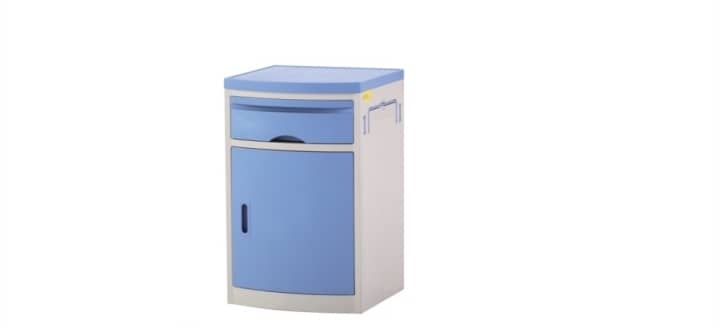

BEDSIDE LOCKERS /CABINETS
>ABS Bedside Cabinet,
attractive Blue color.
Size:475×475×750mm.
>1 drawer and 1 storage cabinet.
>Hidden pull-out tray for cups &articles.
>2towel holders (one on each side).

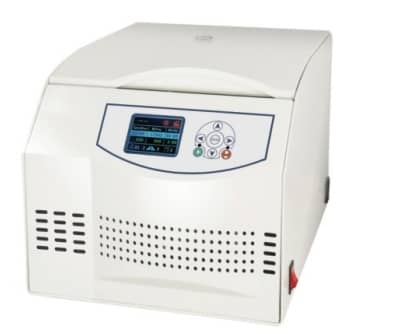

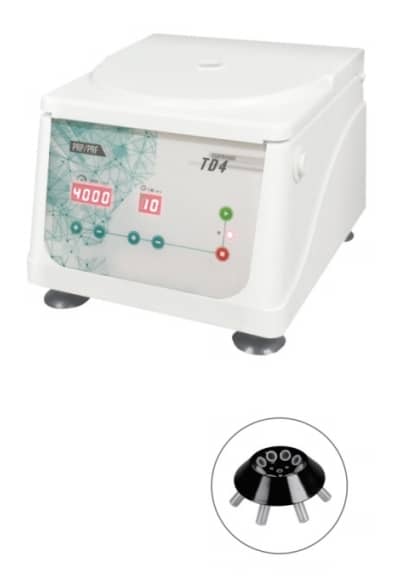

BENCHTOP CENTRIFUGE (LOW SPEED)
Low Speed Centrifuge have a fixed-angle rotor and tubes are spun at a fixed angle relative to the axis of rotation.They are commonly
used for separating particles based on size or density.
HEMATOCRIT CENTRIFUGE
Hematocrit Centrifuge is used for determination of volume fractions of erythrocytes in blood and also for separation of micro
blood and solutions.Centrifugal force separates suspended particles in a fluid and liquids that have different densities.

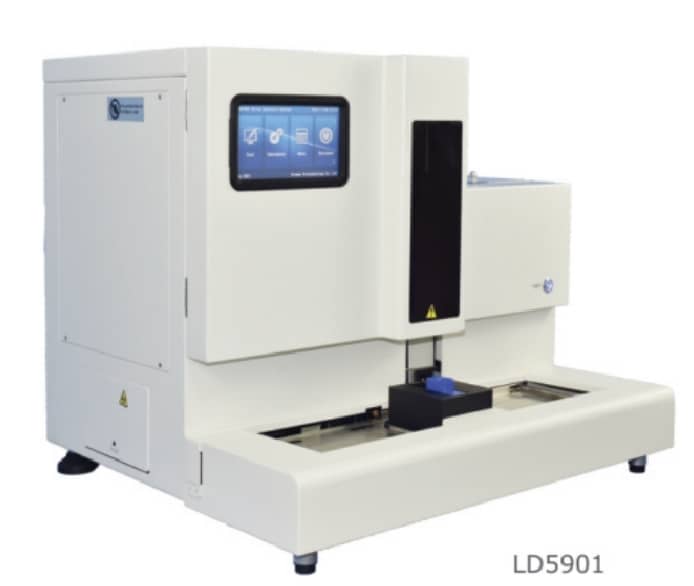

FULL AUTOMATIC URINE
ANALYZER
Specification
Test items/Test Speed
Urobilinogen(UBG),Bilirubin(BIL),Ketone (KET),
Urobilinogen(UBG),Bilirubin(BIL),Ketone (KET),
Blood(BLD),Protein(PRO),Nitrite(NIT),Leukocyte
Blood(BLD),Protein(PRO),Nitrite (NIT),Leukocyte
(LEU),Glucose (GLU),Specific gravity (SG),pH
(LEU),Glucose (GLU),Specific gravity (SG),pH
(pH),Ascorbic Acid(VC),Microalbumin(MAL),
(pH),Ascorbic
Turbidity,Color
Acid(VC),Microalbumin(MAL)
240 samples/hour (15 seconds/sample)
Measurement
principle
Photoelectric colorimetric method for strips,
Refractometric method for color,turbidity and
specific gravity,Full automation:The instrument
can complete the whole process of sample
aspiration,dispensing,analysis and reporting
automatically without user intervention.
Photoelectric colorimetric method through
the reagent area on the test strip and
Urine Biochemical components of the
reaction of color change,determination
of urine biochemical content.
Required sample
volume
1 ml min.
Measurement
environment
Temperature:15°C~35°C,optimal temperature
20°C~25°℃,relative humidity <75%,
Power requirements-300VA
Net Weight – 65Kg
Communication
method-RS232 interface,Transmission method:two-way
Transmission rate:9600bps,Built-in high-speed thermal printer
Data memory
20,000 test results
Display
Dimensions-660mm×625mmx581mm(LxWxH)
Sampling Method
6 racks of 10 tubes(60 samples)load on board
at a time,Each instrument module adopts 32-bit ARM processor and CAN Bus Protocol is applied
to achieve fast and accurate result

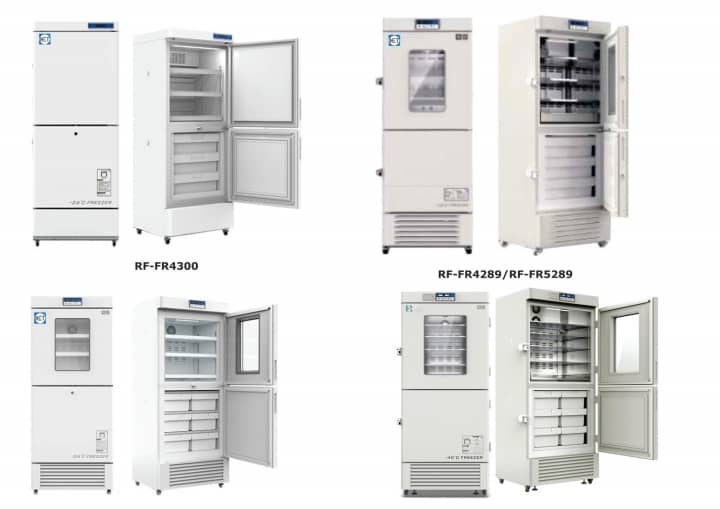

COMBINED REFRIGERATOR AND freezers…
·High precision computerized temperature control system.
·Equipped with high-efficiency compressor and international branded fan that is energy saving with low noise.
·72 hours back-up battery for display and alarm system during power failure.
·Airbag-type built-in door gasket surrounded with hot gas pipe for better defrosting.

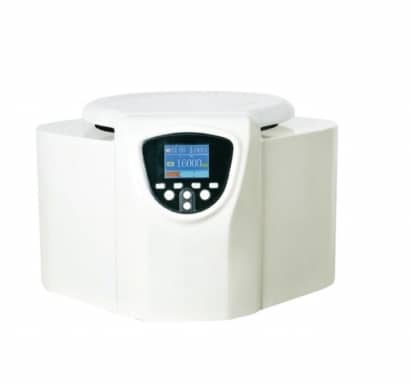

BENCHTOP CENTRIFUGE
High-speed benchtop centrifuges are powerful centrifuges that are designed for use with high-speed rotors and can achieve very high
centrifugal forces.They are commonly used for separating particles in a mixture that are heavier than the surrounding liquid.

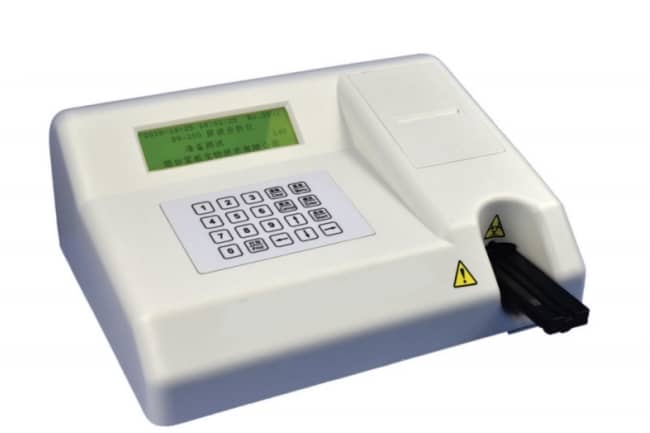

SEMI AUTOMATIC URINE ANALYZER…
(REAGENT STRIP READER)
Specification
Test items
Glucose (GLU),Bilirubin(BIL),Ketone(KET),Specific gravity(SG),pH,Blood (BLD),
Protein(PRO),Urobilinogen (URO),Nitrite (NIT),Leukocyte (LEU),Ascorbic acid (VC),
Creatinine (CRE),Calcium(CAL)and Microalbumin (MAL)
Test speed
120 samples/Hour
514 sample/hour
Measurement principle
Ultra-high brightness cold light source,
reflectometry principle
Artificial intelligence +computer
vision technology
Required sample
volume
urine reagent strip reader
urine reagent strip reader
Measurement environment 15°C~35°C,Humidity<85%15°C~35°C,Humidity<85%
Power requirements-50VA
20VA
Net Weight<3Kg<5KG
SERUM CENTRIFUGE
It is suitable for blood group serology,blood type routine test,micro surgery Gel,erythrocyte washing and immunoassay,etc
Features:
> |
Microprocessor control
LED display:
Alarm for open lid,imbalance,over speed and abnormal rotor mounting. DC Brushless motor,special damping device make the motor run steady,free maintenance;
External cold-rolled steel with powder coating,stainless steel centrifugal chamber and lid.
Special ventilation design can avoid higher temperature to protect samples.
5 PART HEMATOLOGY ANALYZER WITH TOUCH SCREEN
Features ;
Fully automatic 5-part diferentiation of WBC,14-inch color touch screen
>with a resolution of 1366*768
Storage:Up to 100,000 results (including histogram, scattergram, patient information’
Cyanide-free reagents used for HGB test.
Automatic cleaning of sample probe(inside and outside). Combines Tri-angle Laser Scatter with electrical resistance for precise RBC and PLT counting.
Technical Parameters:
High sample Throughput:60 tests/hr.
Low Sample Volume:CBC+DIFF mode:<20ul,CBC mode:<10ul
Test mode:CBC mode,CBC+DIFF mode.Venous whole blood,Capillary whole
blood and Prediluted
Methodology:Tri-angle laser scatter +flow Cytometry +impedance method for WBC;impedance method for RBC and PLT counting
Testing Items:
WBC,RBC,HGB,HCT,MCV,MCH,MCHC,RDW-SD,RDW-CV,PLT,MPV,PCT,
PDW,P-LCR,P-LCC,NEU%,YM%,MON%,EOS%,BAS%,NEU#,LYM#,MON#,
EOS#,BAS# 13D Scattergram,3-histograms:WBC/BASO,RBC,PLT
4 Research parameter:ALY%,ALY#,IG%,IG# Linearity Range:WBC:0.0-300(×10^9/L)RBC:0.0-8(×10^12L)
HGB:0.0-250(gL)PLT:0.0-3000(×10^9/L)
Language:English.Other language on request
QC Control :X-B,L-],X,SD,CV%
Interface:1 LAN port,4 USB ports
Communication:Bi-direcion LIS,support HL7 protocol internal RFID reader
Print:internal thermal-sensitive printer and supports various external USB printers.
Working Environment:Tem.:10°℃-30°℃,humidity:20-85%
Power supply:100-240V,50/60Hz

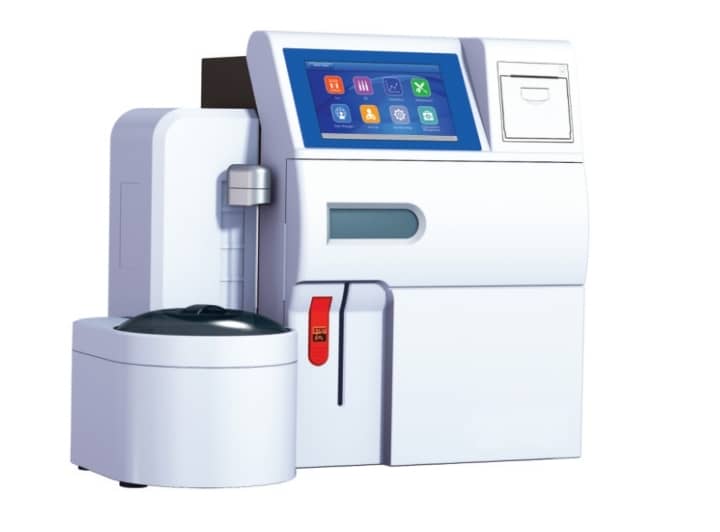

ELECTROLYTE ANALYZER
Function:
>Measures and detects K+,Na+,Cl-,Ca2+,pH,Li+,nCa,TCa,AG,and total carbon dioxide (TCO2).
Sample Type:Serum,Whole Blood,Plasma,Urine,CSF
Features:
>Focus on electrolytes development
>Maintenance-free electrodes with long shelf life
>Imported TCO2 module ensures accuracy and reliability
>Built-in integrated reagent pack reduces biological contamination
>Auto calibration and slope-offset adjustment for accurate results
>Excellent measuring range and detection precision
>User-friendly interface with online fault alarm and troubleshooting
>One-button maintenance procedure for improved efficiency
>Small sample volume(80ul)and fast measuring cycle
(less than 25 seconds)
>Results storage >10,000
)Standard network configuration and online upgradable function
>Reagent volume alert
>Upgradable autoloader
>Air and liquid mixture flush eliminates carryover
>Smart sensor diagnoses and adjusts hardware
>Competitive cost per-test
Technical Parameters:Test Range and Accuracy.

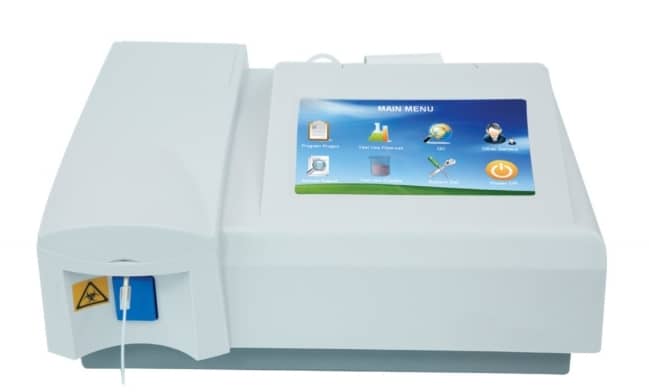

SEMI-AUTOMATIC CHEMISTRY ANALYZER -5 INCH
Features:
5-inch Color LCD,Touch Screen
Flow cell and Cuvette test mode compatible
Real time curve showing
5 wavelengths,80 test items pre-programmed
Memory for 10,000 sample results
Light source hibernate function making lamp life longer
RS 232 interface,PC connecting.
Testing Regimen
Liver function:
ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh,
Renal function:BUN CRE UA URE CO2-CP y-GT
Lipids:T-CHO TG HDL-C LDL-C
Cardiac function:CK CK-MB LDH
Immune proteins:IGA IGG IGM C3
Others:GLU HGB AMS
Specification:
Test mode
Wavelength
Wavelength Precision
Absorbance range
Absorbance precision
Carry Over
Repeatability CV
Incubator
Sample volume
Data Storage
Quality Control Curve
Flow cell
Lamp
Screen
CPU
Printer
Interface
Work Environment
Power Supply
Dimension
Kineting,End Point,Two point,Absorbance
5 standard filters,340,405,505,560,630 nm,3 free position
+/-2 nm,Width<10 nm
0-4.500 Abs
outside 0.0001 Abs,inside 0.00001 abs<1%
37°℃,30℃,25°℃ and others,Precision:+/-0.1℃
0~3000uL(500uL recommend)
10000X SD CV%L-J quality control curve for every test item.
32 uL quartz glass,10 nm
Philips 6 V10 W halogen Lamp with long lfe
5 inch color LCD,Touch Screen
ARM Series high speed micro CUP
Internal thermal sensitive printeRS-232
Temperature 0°C~40℃,Humidity:80%
100-240 VAC,50-60 Hz,100 VA
340(L)*270(W)160(H)Weight:5 Kg
LD1221:SEMI-AUTO CHEMISTRY ANALYZER -7 INCH
Similar to LD1220,but incorporating the following distinct Features as below.
Feature:
7 inch Color LCD,Touch Screen
Wavelength:7 Standard filters,340,405,492,510,546,578,630nm,1 free position.
CO2 INCUBATOR
Technical Features:Capacity
80L
160L
270L
Heating
Temp.Range
Control Type
Air jacket/water jacket
RT+5～60℃
PID control
Temp.Fluctuation
<±0.2℃
Temp.Uniformity
Time Setting
<±0.3°℃
999h or continuous
Alarm
Over-temperature alarm,CO2 Concentration alarm;
Temperature sensor error alarm;Water-shortage alarm.
Material
External cold-rolled steel with painting Internal stainless steel
DoorDouble
Insulation MaterialPolystyrene film
CO2 ControlInfrared sensor,Range 0~20%
Humidification Type
Water tank for natural evaporation
sterilization Type
UV lamp
Power Supply
AC220V±10%,50/60Hz
Consumption
600w(air jacket)
900w(water jacket)
700w(air jacket)
1200w(water jacket)
1200w(air jacket)
2100w(water jacket)
Packing Size(mm)
Gross Weight (kg)
[3:27 PM, 9/5/2025] My Newest Glo: ORBITAL AND LINEAR SHAKER
Orbital and linear shakers are capable of mixing and shaking liquids in bottles,flasks,vessels,test tubes and dishes.Special
designed and developed compact space-saving design fits easily in the incubator and refrigerator.
Features:
LCD display.
Over speed detection and protection..
Can hold 3 pcs platform
Technical Features
Orbital Diameter
Max.Shaking Weight
(with attachment)
Motor Type -7.5kg
Motor Input 28w
Motor Output- 15w
Brushless DC motor-2.5kg
Speed Range (rpm)
100~500(Orbital)
100~800(Orbital)
Speed Display
100~350(Linear)
LCD
100~350(Linear)
Time Range
Operation Mode
1~1199min
Continuous/timed operation
Ambient Temp.5~40℃
Protection Type IP21
Connection Interface
RS232
Power Consumption-30W
Power Supply
Standard Accessory
AC110/220V±10%,50/60Hz
[3:28 PM, 9/5/2025] My Newest Glo: No. 15

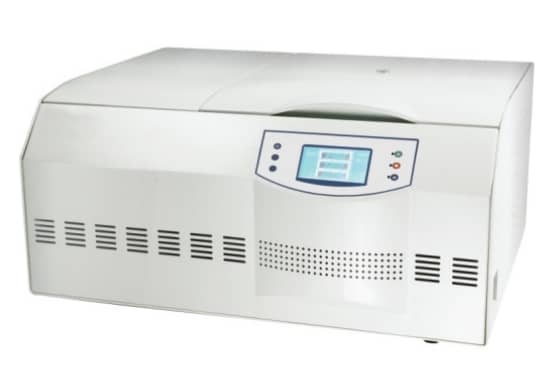

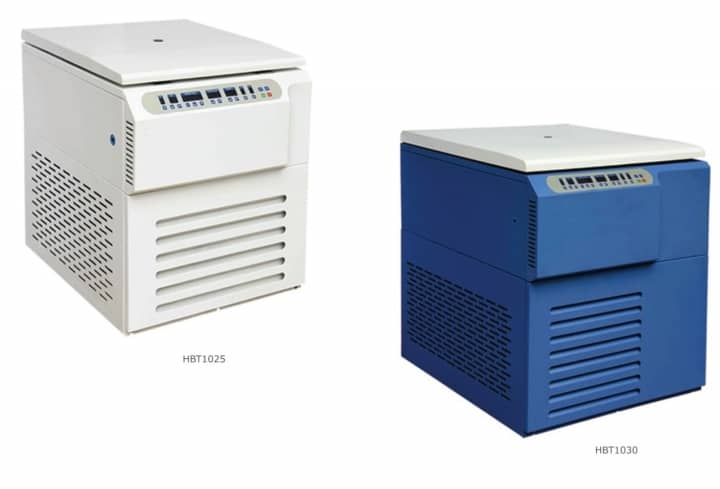

BLOOD BAG CENTRIFUGE -REFRIGERATED
Blood Bank Refrigerated Centrifuge is designed for separating blood and blood components from whole blood like platelet,plasma,RBC and Cryoprecipitate.Refrigerated Centrifuge is ideal for blood banks and hospitals.
Features :
>Microprocessor control,digital display with temperature,time and speed.
Brushless motor,free maintenance,speed up and down quickly
BLOOD BAG CENTRIFUGE -REFRIGERATED
Blood Bank Refrigerated Centrifuge is designed for separating blood and blood components from whole blood like platelet,plasma,RBC and Cryoprecipitate.Refrigerated Centrifuge is ideal for blood banks and hospitals.
Features :
>Microprocessor control,digital display with temperature,time and speed.
Brushless motor,free maintenance,speed up and down quickly.
PLASMA EXTRACTOR
Plasma Extractors are widely used in hospitals for complete separation of blood components.They effectively separate plasma,red blood cells and white blood cells
Features:
> Easy to use,manual system
>Transparent plate for visible control of red cells and plasma
Technical Features:
Clamping Force
20N Applicable Blood Bag-100ml,200ml,300ml,400ml
External size(W*D*H)
165*250*250(mm)
Package size(W*D*H)
310*310*240(mm)
Net weight- 2.5kg
Gross weight-2.8kg
